Product family

Environmental and Mobile Equipment Cylinders

Locking, swing-arm, and telescopic functions presented in the catalogue environmental/mobile equipment section. This family contains 3 catalogue-supported product pages.

Catalogue page 22

HCYY11112013 Locking Cylinder

Φ40×Φ20×200 · 30 MPa · 200 mm

Open technical page →

Catalogue page 23

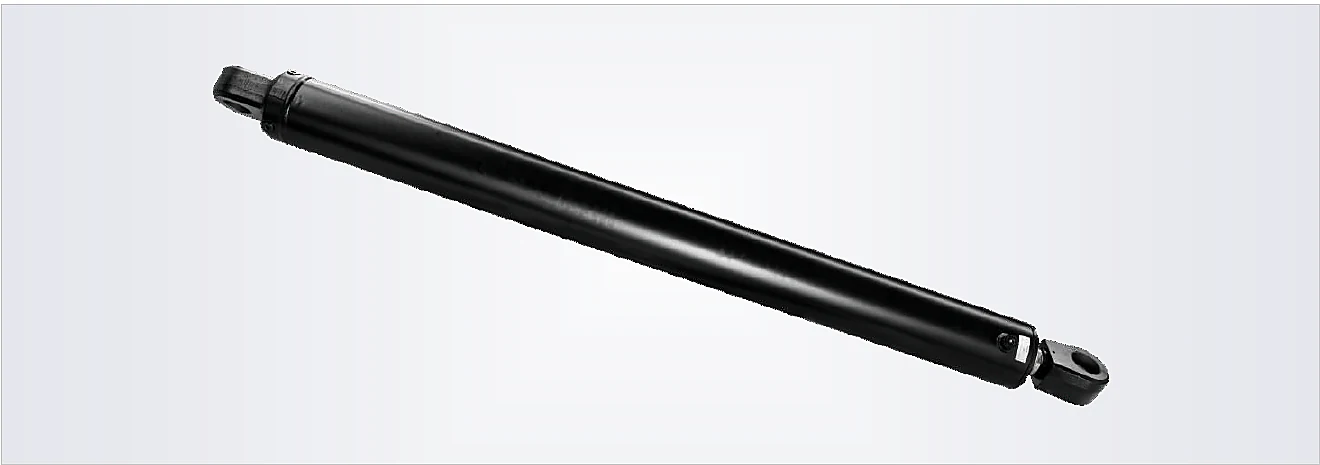

HCYY11112014 Swing Arm Cylinder

Φ160×Φ80×1925 · 30 MPa · 1925 mm

Open technical page →

Catalogue page 23

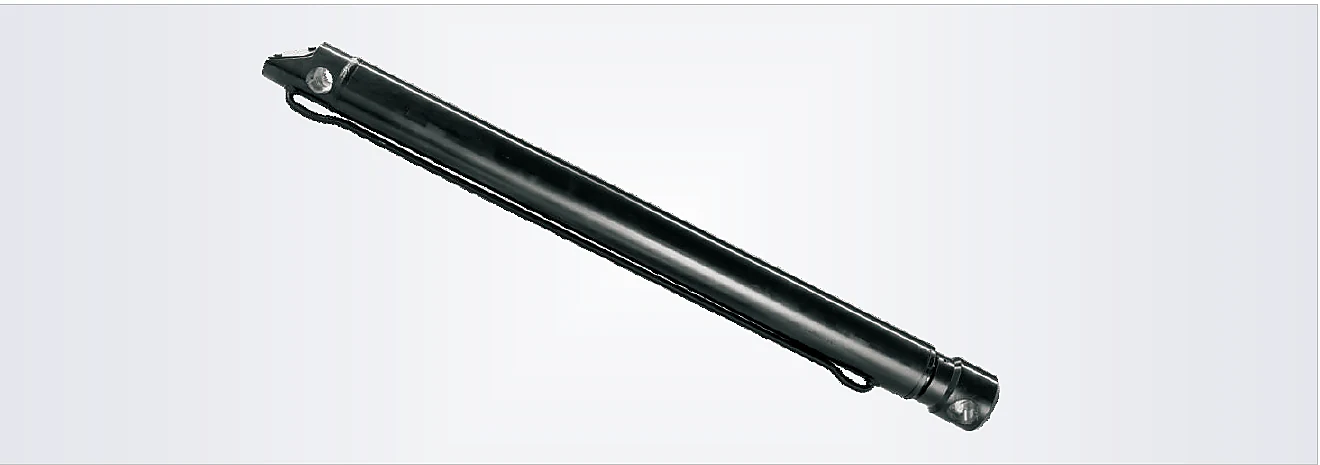

HCYY11112015 Telescopic Cylinder

Φ100×Φ60×1100 · 30 MPa · 1100 mm

Open technical page →

Selection boundary: These pages reproduce catalogue evidence. Confirm machine geometry, load, ports, valves, materials, seals, testing, and drawing revision before ordering.
